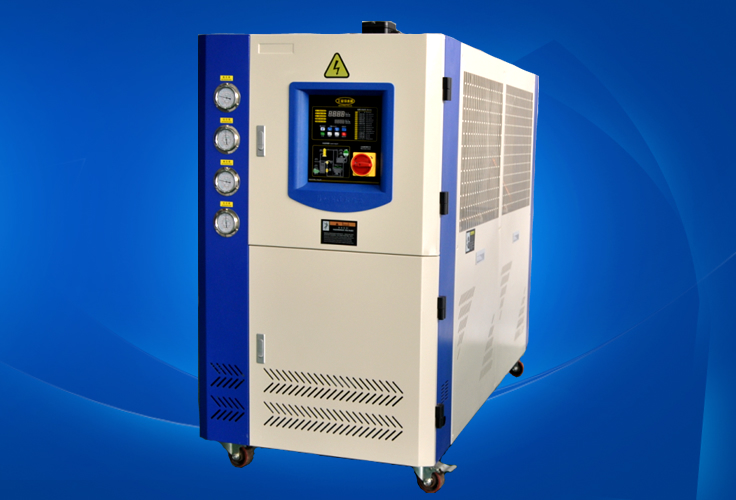

● 選用進口品牌低溫壓縮機，環保冷媒，采用先進制冷控制技術，高能效，低噪音，節能環保。
● 微電腦全功能控制，人機界面友好，操作簡便快捷。
● 可選PLC模塊控制，兼容通訊網線接口，實現遠程控制及監控功能。
● 精密電子自動溫度控制提供±1℃高精度恒溫冷凍水介質。
● 具有電流過載、冷媒系統高低壓、防凍、超溫、相序、延時及水流等安全保護和報警指示功能。
● 液晶顯示冷凍水進出口溫度及設定溫度，并具有顯示查詢故障告警功能。
● 冷凍水系統采用全不銹鋼材質，保持水質清潔節能。
● 工業產品專用設計外型，美觀簡潔，品質非凡。
風冷工業低溫冷水機（-5℃出水）技術參數
|
型號Model
|
RC-3AF
|
RC-5AF
|
RC-8AF
|
RC-10AF
|
RC-12AF
|
|
制冷量Cooling Capacity
|
kW
|
4.5
|
7.0
|
12.0
|
14.0
|
18.0
|
|
103kcal/h
|
3.87
|
6.02
|
10.32
|
12.04
|
15.48
|
|
電源Power Supply
|
V/ph/Hz
|
380/3/50
|
|
輸入功率Input Power
|
kW
|
3.1
|
5.0
|
7.0
|
9.0
|
10.8
|
|
壓縮機類型Compressor Type
|
全封閉高能效渦旋式Scroll
|
|
壓縮機功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
|
水泵功率Pump Power
|
kW
|
0.55
|
0.55
|
0.75
|
0.75
|
1.15
|
|
水泵揚程Pump Head
|
m
|
22.5
|
21.0
|
25.5
|
22.5
|
24.0
|
|
冷凍水流量Chilled Water Flow
|
m3/h
|
1.5
|
2.5
|
3.5
|
4.5
|
5.5
|
|
蒸發器形式Evaporator Type
|
水箱式/不銹鋼板式Water Tank Type/Stainless Steel Plate Type
|
|
水箱容積Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
|
冷凝器Condenser
|
紫銅管套鋁片高能效翅片式Coil
|
|
風量Air Volume
|
m3/h
|
4000
|
6800
|
9300
|
10600
|
12000
|
|
風機功率Fan power
|
W
|
150
|
360
|
500
|
500
|
500
|
|
冷媒Refrigerant
|
R22/R404
|
|
節流方式Throttle Mode
|
毛細管/膨脹閥Capillary Tube/Expansion Valve
|
|
保護裝置Protector
|
高低壓、過載、防凍、延時、超溫、水流保護
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
|
噪音Noise Level
|
dB（A）
|
58
|
58
|
62
|
62
|
65
|
|
機組重量Weight
|
kg
|
135
|
175
|
300
|
430
|
550
|
|

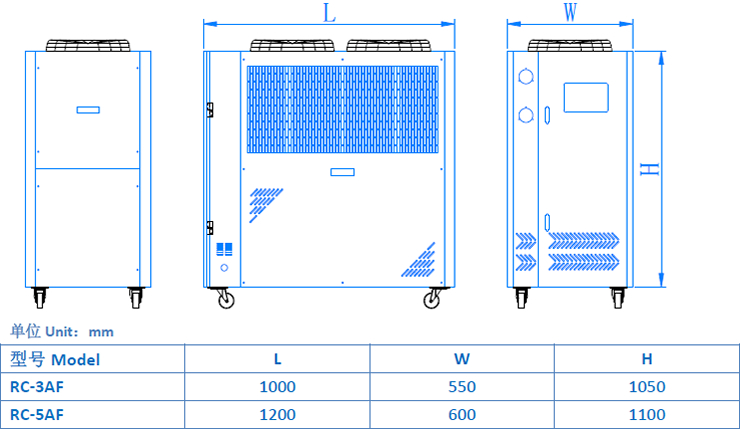

外形尺寸Dimensions
|
長L
|
mm
|
1000
|
1200
|
1450
|
1650
|
1650
|
|
寬W
|
mm
|
550
|
600
|
750
|
790
|
790
|
|
高H
|
mm
|
1120
|
1170
|
1300
|
1400
|
1400
|
|
型號Model
|
RC-15AF
|
RC-20AF
|
RC-25AF
|
RC-30AF
|
RC-40AF
|
|
制冷量Cooling Capacity
|
kW
|
22.0
|
32.0
|
36.5
|
45.5
|
54.0
|
|
103kcal/h
|
18.92
|
27.52
|
31.39
|
39.13
|
46.43
|
|
電源Power Supply
|
V/ph/Hz
|
380/3/50
|
|
輸入功率Input Power
|
kW
|
15.2
|
20.1
|
22.2
|
29.4
|
35.5
|
|
壓縮機類型Compressor Type
|
全封閉高能效渦旋式Scroll
|
|
壓縮機功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
2.25
|
3.75
|
|
水泵揚程Pump Head
|
m
|
27.5
|
27.0
|
26.5
|
25.5
|
28.5
|
|
冷凍水流量Chilled Water Flow
|
m3/h
|
7.5
|
9.0
|
10.5
|
13.0
|
18.0
|
|
蒸發器形式Evaporator Type
|
水箱式/不銹鋼板式Water Tank Type/ Stainless Steel Plate Type
|
|
水箱容積Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
|
冷凝器Condenser
|
紫銅管套鋁片高能效翅片式Coil
|
|
風量Air Volume
|
m3/h
|
16000
|
20000
|
24000
|
29000
|
39600
|
|
風機功率Fan Power
|
W
|
1200
|
1600
|
1700
|
2200
|
2700
|
|
冷媒Refrigerant
|
R22/R404
|
|
節流方式Throttle Mode
|
膨脹閥Expansion Valve
|
|
保護裝置Protector
|
高低壓、過載、防凍、延時、超溫、水流保護
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
|
噪音Noise Level
|
dB（A）
|
65
|
65
|
68
|
68
|
68
|
|
機組重量Weight
|
kg
|
750
|
830
|
920
|
1100
|
1250
|
|
外形尺寸Dimensions
|
長L
|
mm
|
1850
|
2000
|
2150
|
2600
|
3300
|
|
寬W
|
mm
|
900
|
950
|
1000
|
1100
|
1500
|
|
高H
|
mm
|
1650
|
1650
|
1700
|
1700
|
1600
|
說明Directions：
1、以上制冷量基于環境溫度35℃、進水溫度0℃、出水溫度–5℃。
The cooling capacity is based on a 35℃ ambient temperature, a 0℃ entering water temperature, a –5℃ leaving water temperature.
2、本公司保留因技術需要更改產品的權利，請關注公司網站或向相關業務人員咨詢。
Design and specification are subject to change without prior notice.
3、產品是公司標準產品，如有–15℃、–20℃的出水要求，請與本公司聯系定制。
All products are our standard products, please contact with us for special design.
風冷工業低溫冷水機（-10℃出水）技術參數
|
型號Model
|
RC-3AF
|
RC-5AF
|
RC-8AF
|
RC-10AF
|
RC-12AF
|
|
制冷量Cooling Capacity
|
kW
|
3.0
|
4.7
|
7.9
|
11.0
|
13.5
|
|
103kcal/h
|
2.58
|
4.04
|
6.79
|
9.46
|
11.61
|
|
電源Power Supply
|
V/ph/Hz
|
380/3/50
|
|
輸入功率Input Power
|
kW
|
3.1
|
5.0
|
7.0
|
9.5
|
10.8
|
|
壓縮機類型Compressor Type
|
全封閉高能效渦旋式Scroll
|
|
壓縮機功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
|
水泵功率Pump Power
|
kW
|
0.55
|
0.75
|
0.75
|
1.15
|
1.15
|
|
水泵揚程Pump Head
|
m
|
22.5
|
22.0
|
20.0
|
22.5
|
20.0
|
|
冷凍水流量Chilled Water Flow
|
m3/h
|
0.89
|
1.5
|
2.0
|
2.5
|
3.2
|
|
蒸發器形式Evaporator Type
|
水箱式/不銹鋼板式Water Tank Type/Stainless Steel Plate Type
|
|
水箱容積Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
|
冷凝器Condenser
|
紫銅管套鋁片高能效翅片式Coil
|
|
風量Air Volume
|
m3/h
|
4000
|
6800
|
9300
|
10600
|
12000
|
|
風機功率Fan Power
|
W
|
150
|
360
|
500
|
500
|
500
|
|
冷媒Refrigerant
|
R22/R404
|
|
節流方式Throttle Mode
|
毛細管/膨脹閥Capillary Tube/Expansion Valve
|
|
保護裝置Protector
|
高低壓、過載、防凍、延時、超溫、水流保護
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
|
噪音Noise Level
|
dB（A）
|
58
|
58
|
62
|
62
|
65
|
|
機組重量Weight
|
kg
|
135
|
175
|
300
|
430
|
550
|
|
外形尺寸Dimensions
|
長L
|
mm
|
1000
|
1200
|
1450
|
1650
|
1650
|
|
寬W
|
mm
|
550
|
600
|
750
|
790
|
790
|
|
高H
|
mm
|
1120
|
1170
|
1300
|
1400
|
1400
|
|
型號Model
|
RC-15AF
|
RC-20AF
|
RC-25AF
|
RC-30AF
|
RC-40AF
|
|
制冷量Cooling Capacity
|
kW
|
16.5
|
22.0
|
24.5
|
27.0
|
35.0
|
|
103kcal/h
|
14.19
|
18.92
|
20.64
|
23.22
|
30.1
|
|
電源Power Supply
|
V/ph/Hz
|
380/3/50
|
|
輸入功率Input Power
|
kW
|
15.2
|
20.1
|
22.2
|
29.4
|
35.5
|
|
壓縮機類型Compressor Type
|
全封閉高能效渦旋式Scroll
|
|
壓縮機功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
3.75
|
3.75
|
|
水泵揚程Pump Head
|
m
|
25.5
|
22.0
|
20.0
|
25.5
|
20.0
|
|
冷凍水流量Chilled Water Flow
|
m3/h
|
4.5
|
6.0
|
7.5
|
9.0
|
11.0
|
|
蒸發器形式Evaporator Type
|
水箱式/不銹鋼板式Water Tank Type/Stainless Steel Plate Type
|
|
水箱容積Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
|
冷凝器Condenser
|
紫銅管套鋁片高能效翅片式Coil
|
|
風量Air Volume
|
m3/h
|
16000
|
20000
|
24000
|
29000
|
39600
|
|
風機功率Fan Power
|
W
|
1200
|
1600
|
1700
|
2200
|
2700
|
|
冷媒Refrigerant
|
R22/R404
|
|
節流方式Throttle Mode
|
膨脹閥Expansion Valve
|
|
保護裝置Protector
|
高低壓、過載、防凍、延時、超溫、水流保護
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
|
噪音Noise Level
|
dB（A）
|
65
|
65
|
68
|
68
|
68
|
|
機組重量Weight
|
kg
|
750
|
830
|
920
|
1100
|
1250
|
|
外形尺寸Dimensions
|
長L
|
mm
|
1850
|
2000
|
2150
|
2600
|
3300
|
|
寬W
|
mm
|
900
|
950
|
1000
|
1100
|
1500
|
|
高H
|
mm
|
1650
|
1650
|
1700
|
1700
|
1600
|
說明Directions：
1、以上制冷量基于環境溫度35℃、進水溫度–5℃、出水溫度–10℃。
The cooling capacity is based on a 35℃ ambient temperature, a –5℃ entering water temperature and a –10℃ leaving water temperature.
2、本公司保留因技術需要更改產品的權利，請關注公司網站或向相關業務人員咨詢。
Design and specification are subject to change without prior notice.
3、產品是公司標準產品，–15℃、–20℃出水要求，請與本公司聯系定制。
All products are our standard products, please contact with us for special
|
